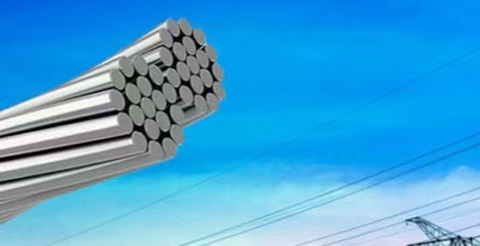

Los conductores AAC son conductores trenzados de aluminio refinado, fabricados a partir de aluminio electrolítico, con una pureza mínima del 99,7 %. El AAC se utiliza principalmente en zonas urbanas con distancias cortas y estructuras de soporte más densas. Todos los conductores de aluminio se forman trenzando uno o más alambres de aluminio. Gracias a su altísima resistencia a la corrosión, también se puede utilizar en zonas costeras y tiene amplias aplicaciones en las industrias ferroviaria y del metro.
ASTM B231
|
Nombre del código |
Sección transversal nominal de Al |
Número de hebras/diámetro |
Diámetro total aproximado |
masa lineal |
Carga de rotura nominal |
Max. Resistencia DC del conductor a 20℃ |
|
|
AWG OR MCM |
mm² |
mm |
mm |
Kg/km |
KN |
Ω/km |
|
|
Peachbell |
6 |
13.30 |
7/1.56 |
4.68 |
36.6 |
2.5 |
2.170 |
|
Rose |
4 |
21.16 |
7/1.96 |
5.88 |
58.2 |
3.9 |
1.364 |
|
Iris |
2 |
33.61 |
7/2.474 |
7.42 |
93 |
6.0 |
0.8577 |
|
Pansy |
1 |
42.39 |
7/2.776 |
8.33 |
117 |
7.3 |
0.6801 |
|
Poppy |
1/0 |
53.48 |
7/3.119 |
9.36 |
147 |
8.8 |
0.5390 |
|
Aster |
2/0 |
67.42 |
7/3.503 |
10.51 |
186 |
11.1 |
0.4276 |
|
Phlox |
3/0 |
85.03 |
7/3.932 |
11.80 |
234 |
13.5 |
0.3390 |
|
Oxlip |
4/0 |
107.23 |
7/4.417 |
13.26 |
293 |
17.0 |
0.2688 |
|
Valerian |
250 |
126.71 |
19/2.913 |
14.57 |
349 |
20.7 |
0.2275 |
|
Sneezewort |
250 |
126.71 |
7/4.8 |
14.4 |
349 |
20.1 |
0.2275 |
|
Laurel |
266.8 |
135.16 |
19/3.01 |
15.05 |
373 |
22.1 |
0.2133 |
|
Daisy |
266.8 |
135.16 |
7/4.96 |
14.9 |
373 |
21.4 |
0.2133 |
|
Peony |
300 |
152.00 |
19/3.193 |
15.97 |
419 |
24.3 |
0.1896 |
|
Tulip |
336.4 |
170.45 |
19/3.381 |
16.91 |
470 |
27.3 |
0.1691 |
|
Daffodil |
350 |
177.35 |
19/3.447 |
17.24 |
489 |
28.4 |
0.1625 |
|
Syringa |
477 |
241.68 |
37/2.882 |
20.19 |
666 |
38.6 |
0.1193 |
|
Cosmos |
477 |
241.68 |
19/4.023 |
20.12 |
666 |
37.0 |
0.1193 |
|
Orchid |
636 |
322.25 |
37/3.33 |
23.31 |
888 |
4985 |
0.0894 |
|
Heuchera |
650 |
329.35 |
37/3.366 |
23.56 |
908 |
50.4 |
0.0875 |
|
Arbutus |
795 |
402.84 |
61/2.90 |
26.11 |
1111 |
61.8 |
0.07150 |
|
Lilac |
795 |
402.84 |
61/2.90 |
26.11 |
1111 |
63.8 |
0.07150 |
|
Camellia |
1000 |
506.71 |
61/3.251 |
29.36 |
1397 |
78.3 |
0.05690 |
|
Hawkweed |
1000 |
506.71 |
37/4.176 |
29.23 |
1397 |
76.2 |
0.05690 |
|
Coreopsis |
1590 |
805.68 |
61/4.099 |
36.51 |
2221 |
120.0 |
0.03568 |
|
Bluebonnet |
3500 |
1773.50 |
127/4.21 |
54.80 |
4985 |
261.0 |
0.01653 |
IEC 61089
|
Sección transversal |
Número de cables trenzados |
Diámetro del alambre |
Diámetro del conductor |
Peso de masa lineal |
Carga de rotura calculada |
Max. Resistencia DC del conductor a 20℃ |
|
mm² |
No. |
mm |
mm |
Kg/km |
KN |
Ω/km |
|
10 |
7 |
1.35 |
4.05 |
27.40 |
1.95 |
2.8633 |
|
16 |
7 |
1.71 |
5.13 |
43.80 |
3.04 |
1.7896 |
|
25 |
7 |
2.13 |
6.39 |
68.40 |
4.50 |
1.1453 |
|
40 |
7 |
2.7 |
8.10 |
109.4 |
6.80 |
0.7158 |
|
63 |
7 |
3.39 |
10.17 |
172.3 |
10.39 |
0.4545 |
|
100 |
19 |
2.59 |
12.95 |
274.8 |
17.00 |
0.2877 |
|
125 |
19 |
2.89 |
14.45 |
343.6 |
21.25 |
0.2302 |
|
160 |
19 |
3.27 |
16.35 |
439.8 |
26.40 |
0.1798 |
|
200 |
19 |
3.66 |
18.30 |
549.7 |
32.00 |
0.1439 |
|
250 |
19 |
4.09 |
20.45 |
687.1 |
40.00 |
0.1151 |
|
315 |
37 |
3.29 |
23.03 |
867.9 |
51.97 |
0.0916 |
|
400 |
37 |
3.71 |
25.97 |
1102.0 |
64.00 |
0.0721 |
|
450 |
37 |
3.94 |
27.58 |
1239.8 |
72.00 |
0.0641 |
|
500 |
37 |
4.15 |
29.05 |
1377.6 |
80.00 |
0.0577 |
|
560 |
37 |
4.39 |
30.73 |
1542.9 |
89.60 |
0.0515 |
|
630 |
61 |
3.63 |
32.67 |
1738.3 |
100.08 |
0.0458 |
|
710 |
61 |
3.85 |
34.65 |
1959.10 |
113.60 |
0.0407 |
|
800 |
61 |
4.09 |
36.81 |
2207.4 |
128.00 |
0.0361 |
|
900 |
61 |
4.33 |
38.97 |
2483.3 |
144.00 |
0.0321 |
|
1000 |
61 |
4.57 |
41.13 |
2759.20 |
160.00 |
0.0289 |
|
1120 |
61 |
3.96 |
43.56 |
3093.5 |
179.20 |
0.0258 |
|
1250 |
91 |
4.18 |
45.98 |
3452.60 |
200.00 |
0.0231 |
|
1400 |
91 |
4.43 |
48.73 |
3866.9 |
224.00 |
0.0207 |
|
1500 |
91 |
4.58 |
50.38 |
4143.10 |
240.00 |
0.0193 |
BS 215
|
Nombre del código |
Sección transversal nominal |
Número y diámetro del cable |
La sección Al son |
Diámetro total |
Peso lineal |
Carga de rotura calculada |
Max. Resistencia DC del conductor a 20℃ |
|
mm² |
No./mm |
mm² |
mm |
Kg/km |
KN |
Ω/km |
|
|
Midge |
22 |
7/2.06 |
23.33 |
6.18 |
63.88 |
3.99 |
1.2270 |
|
Gnat |
25 |
7/2.21 |
26.85 |
6.63 |
73.53 |
4.59 |
1.0660 |
|
mosquito |
35 |
7/2.59 |
36.88 |
7.77 |
101 |
6.02 |
0.7762 |
|
Ant |
50 |
7/3.10 |
52.83 |
9.30 |
144.70 |
8.28 |
0.5419 |
|
Fly |
60 |
7/3.40 |
63.55 |
10.20 |
174.00 |
9.90 |
0.4505 |
|
Earwing |
70 |
7/3.78 |
78.54 |
11.34 |
215.10 |
11.97 |
0.3645 |
|
Wasp |
100 |
7/4.39 |
106.00 |
13.17 |
290.20 |
16.00 |
0.2702 |
|
Hornet |
150 |
19/3.25 |
157.60 |
16.25 |
433.60 |
25.70 |
0.1825 |
|
Chafer |
200 |
19/3.78 |
213.20 |
18.90 |
586.60 |
32.40 |
0.1349 |
|
Cockroach |
250 |
19/4.22 |
265.70 |
21.10 |
731.20 |
40.40 |
0.1083 |
|
Butterfly |
300 |
19/4.65 |
322.70 |
23.25 |
887.70 |
48.75 |
0.08916 |
|
Drone |
350 |
37/3.58 |
327.60 |
25.06 |
1021.00 |
57.29 |
0.07739 |
|
Centipede |
400 |
37/3.78 |
415.20 |
26.46 |
1145.00 |
63.10 |
0.06944 |
|
Maybug |
450 |
37/4.09 |
486.20 |
28.63 |
1341.00 |
73.82 |
0.05930 |
|
scorpion |
500 |
37/4.27 |
529.80 |
29.89 |
1461.00 |
80.14 |
0.05442 |
|
Cicada |
600 |
37/4.65 |
628.30 |
32.55 |
1732.00 |
94.91 |
0.04590 |
DIN 48201
|
Área |
Número y diámetro del cable |
Diámetro total aproximado |
Aprox. Peso |
Carga de rotura nominal |
Max. Resistencia DC del conductor a 20℃ |
|
|
Nominal |
Actual |
|||||
|
mm² |
mm² |
No./mm |
mm |
Kg/km |
KN |
Ω/km |
|
16 |
15.9 |
7/1.70 |
5.10 |
44 |
2.84 |
1.8017 |
|
25 |
24.3 |
7/2.10 |
6.30 |
67 |
4.17 |
1.1806 |
|
35 |
34.4 |
7/2.50 |
7.50 |
95 |
5.78 |
0.8332 |
|
50 |
49.5 |
7/3.00 |
9.00 |
136 |
7.94 |
0.5786 |
|
50 |
48.4 |
19/1.80 |
9.00 |
133 |
8.45 |
0.5948 |
|
70 |
65.8 |
19/2.10 |
10.50 |
181 |
11.32 |
0.437 |
|
95 |
93.3 |
19/2.50 |
12.50 |
257 |
15.68 |
0.3048 |
|
120 |
117.0 |
19/2.80 |
14.00 |
322 |
18.78 |
0.2459 |
|
150 |
147.1 |
37/2.25 |
15.75 |
405 |
25.30 |
0.196 |
|
185 |
181.6 |
37/2.50 |
17.50 |
501 |
30.54 |
0.1588 |
|
240 |
242.5 |
61/2.25 |
20.25 |
670 |
39.51 |
0.1192 |
|
300 |
299.4 |
61/2.50 |
22.50 |
827 |
47.70 |
0.09651 |
|
400 |
400.1 |
61/2.89 |
26.01 |
1105 |
60.86 |
0.07222 |
|
500 |
499.8 |
61/3.23 |
29.07 |
1381 |
74.67 |
0.05782 |
|
625 |
626.2 |
91/2.96 |
32.56 |
1739 |
95.25 |
0.04625 |
|
800 |
802.1 |
91/3.35 |
36.85 |
2227 |
118.39 |
0.03611 |
|
1000 |
999.7 |
91/3.74 |
41.14 |
2776 |
145.76 |
0.02897 |
BS EN 50182
|
Nombre del código |
Número y diámetro del cable |
Diámetro total aproximado |
Total Área |
Aprox. Peso |
Carga de rotura nominal |
Max. Resistencia DC del conductor a 20℃ |
|
No./mm |
mm |
mm² |
Kg/km |
KN |
Ω/km |
|
|
Gnat |
7/2.21 |
6.63 |
26.9 |
73 |
4.83 |
1.0643 |
|
Mosquito |
7/2.59 |
7.77 |
36.9 |
101 |
6.27 |
0.7749 |
|
Ladybird |
7/2.79 |
8.37 |
42.8 |
117 |
7.28 |
0.6678 |
|
Bluebottle |
7/3.66 |
10.98 |
73.6 |
201 |
11.78 |
0.3880 |
|
Earwig |
7/3.78 |
11.34 |
78.6 |
215 |
12.57 |
0.3638 |
|
Grasshopper |
7/3.91 |
11.73 |
84.1 |
230 |
13.46 |
0.3400 |
|
Clegg |
7/4.17 |
12.51 |
95.6 |
261 |
15.30 |
0.2989 |
|
Beetle |
19/2.67 |
13.35 |
106.4 |
292 |
18.08 |
0.2701 |
|
Bee |
7/4.90 |
14.70 |
132.0 |
361 |
21.12 |
0.2165 |
|
Caterpillar |
19/3.53 |
17.65 |
185.9 |
511 |
29.75 |
0.1546 |
|
Spider |
19/3.99 |
19.95 |
237.6 |
653 |
38.01 |
0.1210 |
|
Moth |
19/5.00 |
25.00 |
373.1 |
1025 |
59.69 |
0.0770 |
|
Drone |
37/3.58 |
25.06 |
372.4 |
1027 |
59.59 |
0.0774 |
|
Maybug |
37/4.09 |
28.63 |
486.1 |
1340 |
77.78 |
0.0593 |
|
Scorpion |
37/4.27 |
29.89 |
529.8 |
1461 |
84.77 |
0.0544 |
|
Cicada |
37/4.65 |
32.55 |
628.3 |
1732 |
100.54 |
0.0459 |
GB/T 1179
|
Nombre del código |
Área Total |
Número y diámetro del cable |
Diámetro total aproximado |
Aprox. Peso |
Carga de rotura nominal |
Max. Resistencia DC del conductor a 20℃ |
|
mm² |
No./mm |
mm |
Kg/km |
KN |
Ω/km |
|
|
35 |
34.4 |
7/2.50 |
7.50 |
94.0 |
6.0 |
0.8333 |
|
50 |
49.5 |
7/3.00 |
9.00 |
135 .3 |
8.4 |
0.5787 |
|
70 |
71.3 |
7/3.60 |
10.80 |
194.9 |
11.4 |
0.4019 |
|
95 |
95.1 |
7/4.16 |
12.50 |
260.2 |
15.2 |
0.3010 |
|
120 |
121 2 |
19/2.85 |
14.30 |
333.2 |
20.6 |
0.2374 |
|
150 |
148.1 |
19/3.15 |
15.80 |
407.0 |
24.4 |
0.1943 |
|
185 |
182.8 |
19/3.50 |
17.50 |
502.4 |
30.2 |
0.1574 |
|
210 |
209.9 |
193.75 |
18.80 |
576.8 |
33.6 |
0.1371 |
|
240 |
238.8 |
19/4.00 |
20.00 |
656.3 |
38.2 |
0.1205 |
|
300 |
297.6 |
19/3.20 |
22.40 |
819.8 |
49.1 |
0.0969 |
|
500 |
502.9 |
19/4.16 |
29.10 |
1385.5 |
80.5 |
0.0573 |
AS/NZS 1531
|
Nombre del código |
Área Nominal |
Número y diámetro del cable |
Diámetro total aproximado |
Aprox. Peso |
Carga de rotura nominal |
Max. Resistencia DC del conductor a 20℃ |
|
mm² |
No./mm |
mm |
Kg/km |
KN |
Ω/km |
|
|
Leo |
34.36 |
7/2.50 |
7.50 |
95 |
5.71 |
0.833 |
|
Leonids |
41.58 |
7/2.75 |
8.25 |
114 |
6.72 |
0.689 |
|
Libra |
49.48 |
7/3.00 |
9.00 |
136 |
7.98 |
0.579 |
|
Mars |
77.31 |
7/3.75 |
11.25 |
213 |
11.8 |
0.370 |
|
Mercury |
111.33 |
7/4.50 |
13.50 |
306 |
16.9 |
0.258 |
|
Moon |
124.04 |
7/4.75 |
14.25 |
341 |
18.9 |
0.232 |
|
Neptune |
157.62 |
19/3.25 |
16.25 |
434 |
24.7 |
0.183 |
|
Orion |
182.80 |
19/3.50 |
17.50 |
503 |
28.7 |
0.157 |
|
Pluto |
209.85 |
19/3.75 |
18.75 |
578 |
31.9 |
0.137 |
|
Saturn |
261.54 |
37/3.00 |
21.00 |
720 |
42.2 |
0.110 |
|
Sirius |
306.94 |
37/3.25 |
22.75 |
845 |
48.2 |
0.094 |
|
Taurus |
336.69 |
19/4.75 |
23.75 |
927 |
51.3 |
0.0857 |
|
Triton |
408.65 |
37/3.75 |
26.25 |
1125 |
62. 2 |
0.0706 |
|
Triton |
506.04 |
61/3.25 |
29.25 |
1393 |
75.2 |
0.0572 |
|
Ursula |
586.89 |
61/3.50 |
31.50 |
1616 |
87. 3 |
0.0493 |
|
Venus |
673. 72 |
61/3.75 |
33.75
|
1855 |
97.2 |
0.0429 |
Clase AA:
Para conductores desnudos utilizados habitualmente en líneas aéreas.
Clase A:
Para conductores que se van a recubrir con materiales resistentes a la intemperie y para conductores desnudos donde se requiere mayor flexibilidad.
Copyright © ZHENGZHOU SHIZHAN INDUSTRIAL CO., LTD. Power by yisainuo
