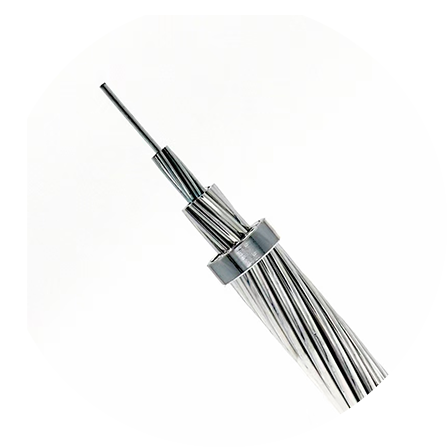

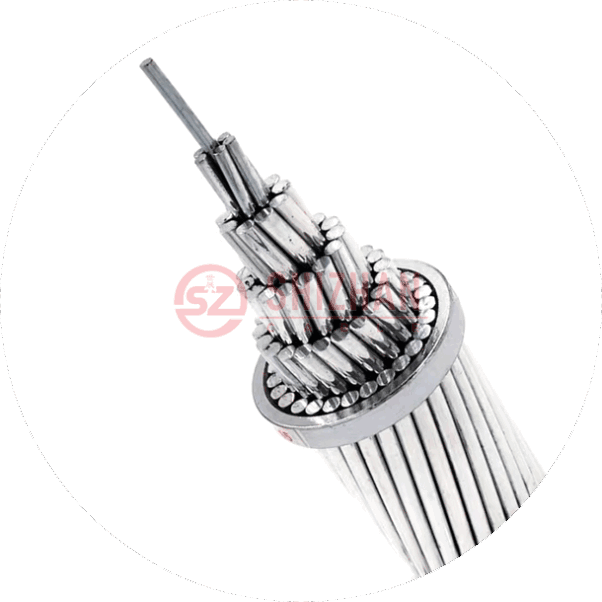

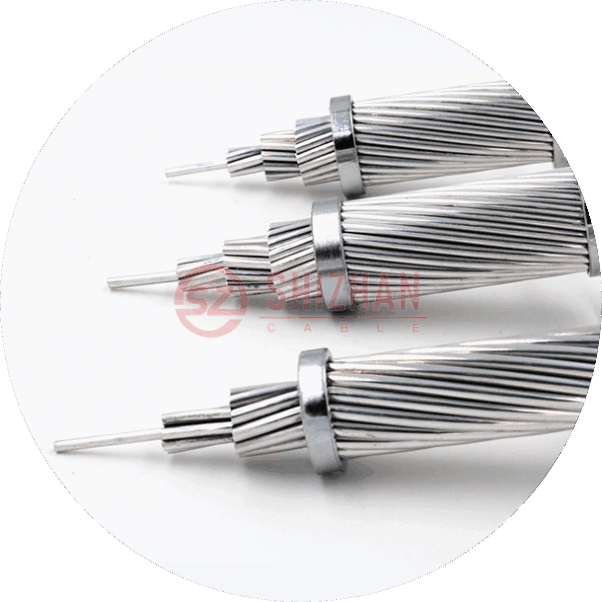

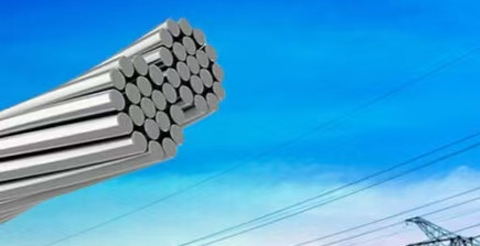

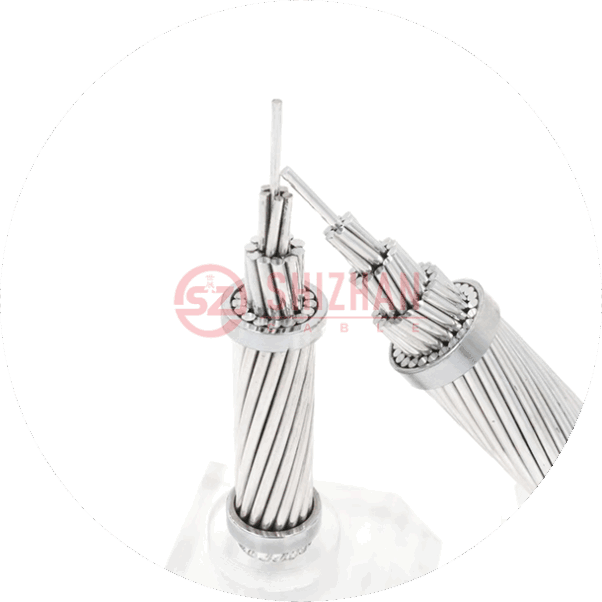

AAC Conductor are a refined Aluminium stranded conductor made from electrolytically refined aluminum, with a minimum purity of 99.7%. AAC is mainly used in urban areas with shorter distances and denser support structures. All aluminum conductors are formed by twisting one or more aluminum wires together. Due to its extremely high corrosion resistance, it can also be used in coastal areas and has extensive applications in the railway and subway industries.
ASTM B231
|
Code name |
Nominal Al cross section |
NO. Of Strands/ diameter |
Approx. Overall diameter |
Linear mass |
Nominal breaking load |
Max DC resistance |
|
| AWG OR MCM | mm² | mm | mm |
Kg/km |
KN |
Ω/km |
|
|
Peachbell |
6 |
13.30 |
7/1.56 |
4.68 |
36.6 |
2.5 |
2.170 |
|
Rose |
4 |
21.16 |
7/1.96 |
5.88 |
58.2 |
3.9 |
1.364 |
|
Iris |
2 |
33.61 |
7/2.474 |
7.42 |
93 |
6.0 |
0.8577 |
|
Pansy |
1 |
42.39 |
7/2.776 |
8.33 |
117 |
7.3 |
0.6801 |
|
Poppy |
1/0 |
53.48 |
7/3.119 |
9.36 |
147 |
8.8 |
0.5390 |
|
Aster |
2/0 |
67.42 |
7/3.503 |
10.51 |
186 |
11.1 |
0.4276 |
|
Phlox |
3/0 |
85.03 |
7/3.932 |
11.80 |
234 |
13.5 |
0.3390 |
|
Oxlip |
4/0 |
107.23 |
7/4.417 |
13.26 |
293 |
17.0 |
0.2688 |
|
Valerian |
250 |
126.71 |
19/2.913 |
14.57 |
349 |
20.7 |
0.2275 |
|
Sneezewort |
250 |
126.71 |
7/4.8 |
14.4 |
349 |
20.1 |
0.2275 |
|
Laurel |
266.8 |
135.16 |
19/3.01 |
15.05 |
373 |
22.1 |
0.2133 |
|
Daisy |
266.8 |
135.16 |
7/4.96 |
14.9 |
373 |
21.4 |
0.2133 |
|
Peony |
300 |
152.00 |
19/3.193 |
15.97 |
419 |
24.3 |
0.1896 |
|
Tulip |
336.4 |
170.45 |
19/3.381 |
16.91 |
470 |
27.3 |
0.1691 |
|
Daffodil |
350 |
177.35 |
19/3.447 |
17.24 |
489 |
28.4 |
0.1625 |
|
Syringa |
477 |
241.68 |
37/2.882 |
20.19 |
666 |
38.6 |
0.1193 |
|
Cosmos |
477 |
241.68 |
19/4.023 |
20.12 |
666 |
37.0 |
0.1193 |
|
Orchid |
636 |
322.25 |
37/3.33 |
23.31 |
888 |
4985 |
0.0894 |
|
Heuchera |
650 |
329.35 |
37/3.366 |
23.56 |
908 |
50.4 |
0.0875 |
|
Arbutus |
795 |
402.84 |
61/2.90 |
26.11 |
1111 |
61.8 |
0.07150 |
|
Lilac |
795 |
402.84 |
61/2.90 |
26.11 |
1111 |
63.8 |
0.07150 |
|
Camellia |
1000 |
506.71 |
61/3.251 |
29.36 |
1397 |
78.3 |
0.05690 |
|
Hawkweed |
1000 |
506.71 |
37/4.176 |
29.23 |
1397 |
76.2 |
0.05690 |
|
Coreopsis |
1590 |
805.68 |
61/4.099 |
36.51 |
2221 |
120.0 |
0.03568 |
|
Bluebonnet |
3500 |
1773.50 |
127/4.21 |
54.80 |
4985 |
261.0 |
0.01653 |
IEC 61089
|
Cross section |
No. Of stranding wires |
Diameter of wire |
Conductor diameter |
Linear mass weight |
Calculated breaking load |
Max.DC resistance of conductor at 20℃ |
|
mm² |
No. |
mm |
mm |
Kg/km |
KN |
Ω/km |
|
10 |
7 |
1.35 |
4.05 |
27.40 |
1.95 |
2.8633 |
|
16 |
7 |
1.71 |
5.13 |
43.80 |
3.04 |
1.7896 |
|
25 |
7 |
2.13 |
6.39 |
68.40 |
4.50 |
1.1453 |
|
40 |
7 |
2.7 |
8.10 |
109.4 |
6.80 |
0.7158 |
|
63 |
7 |
3.39 |
10.17 |
172.3 |
10.39 |
0.4545 |
|
100 |
19 |
2.59 |
12.95 |
274.8 |
17.00 |
0.2877 |
|
125 |
19 |
2.89 |
14.45 |
343.6 |
21.25 |
0.2302 |
|
160 |
19 |
3.27 |
16.35 |
439.8 |
26.40 |
0.1798 |
|
200 |
19 |
3.66 |
18.30 |
549.7 |
32.00 |
0.1439 |
|
250 |
19 |
4.09 |
20.45 |
687.1 |
40.00 |
0.1151 |
|
315 |
37 |
3.29 |
23.03 |
867.9 |
51.97 |
0.0916 |
|
400 |
37 |
3.71 |
25.97 |
1102.0 |
64.00 |
0.0721 |
|
450 |
37 |
3.94 |
27.58 |
1239.8 |
72.00 |
0.0641 |
|
500 |
37 |
4.15 |
29.05 |
1377.6 |
80.00 |
0.0577 |
|
560 |
37 |
4.39 |
30.73 |
1542.9 |
89.60 |
0.0515 |
|
630 |
61 |
3.63 |
32.67 |
1738.3 |
100.08 |
0.0458 |
|
710 |
61 |
3.85 |
34.65 |
1959.10 |
113.60 |
0.0407 |
|
800 |
61 |
4.09 |
36.81 |
2207.4 |
128.00 |
0.0361 |
|
900 |
61 |
4.33 |
38.97 |
2483.3 |
144.00 |
0.0321 |
|
1000 |
61 |
4.57 |
41.13 |
2759.20 |
160.00 |
0.0289 |
|
1120 |
61 |
3.96 |
43.56 |
3093.5 |
179.20 |
0.0258 |
|
1250 |
91 |
4.18 |
45.98 |
3452.60 |
200.00 |
0.0231 |
|
1400 |
91 |
4.43 |
48.73 |
3866.9 |
224.00 |
0.0207 |
|
1500 |
91 |
4.58 |
50.38 |
4143.10 |
240.00 |
0.0193 |
BS 215
|
Code name |
Nominal cross section |
No./Dia. of stranding wires |
Section al area |
Overall diameter |
Linear weight |
Calculated breaking load |
Max.DC resistance of conductor at 20℃ |
|
mm² |
No./mm |
mm² |
mm |
Kg/km |
KN |
Ω/km |
|
|
Midge |
22 |
7/2.06 |
23.33 |
6.18 |
63.88 |
3.99 |
1.2270 |
|
Gnat |
25 |
7/2.21 |
26.85 |
6.63 |
73.53 |
4.59 |
1.0660 |
|
mosquito |
35 |
7/2.59 |
36.88 |
7.77 |
101 |
6.02 |
0.7762 |
|
Ant |
50 |
7/3.10 |
52.83 |
9.30 |
144.70 |
8.28 |
0.5419 |
|
Fly |
60 |
7/3.40 |
63.55 |
10.20 |
174.00 |
9.90 |
0.4505 |
|
Earwing |
70 |
7/3.78 |
78.54 |
11.34 |
215.10 |
11.97 |
0.3645 |
|
Wasp |
100 |
7/4.39 |
106.00 |
13.17 |
290.20 |
16.00 |
0.2702 |
|
Hornet |
150 |
19/3.25 |
157.60 |
16.25 |
433.60 |
25.70 |
0.1825 |
|
Chafer |
200 |
19/3.78 |
213.20 |
18.90 |
586.60 |
32.40 |
0.1349 |
|
Cockroach |
250 |
19/4.22 |
265.70 |
21.10 |
731.20 |
40.40 |
0.1083 |
|
Butterfly |
300 |
19/4.65 |
322.70 |
23.25 |
887.70 |
48.75 |
0.08916 |
|
Drone |
350 |
37/3.58 |
327.60 |
25.06 |
1021.00 |
57.29 |
0.07739 |
|
Centipede |
400 |
37/3.78 |
415.20 |
26.46 |
1145.00 |
63.10 |
0.06944 |
|
Maybug |
450 |
37/4.09 |
486.20 |
28.63 |
1341.00 |
73.82 |
0.05930 |
|
scorpion |
500 |
37/4.27 |
529.80 |
29.89 |
1461.00 |
80.14 |
0.05442 |
|
Cicada |
600 |
37/4.65 |
628.30 |
32.55 |
1732.00 |
94.91 |
0.04590 |
DIN 48201
|
Area |
No.& Dia. Of Wire |
Approx. Overall diameter |
Approx. Weight |
Nominal breaking load |
Max.DC resistance of conductor at 20℃ |
|
|
Nominal |
Actual |
|||||
|
mm² |
mm² |
No./mm |
mm |
Kg/km |
KN |
Ω/km |
|
16 |
15.9 |
7/1.70 |
5.10 |
44 |
2.84 |
1.8017 |
|
25 |
24.3 |
7/2.10 |
6.30 |
67 |
4.17 |
1.1806 |
|
35 |
34.4 |
7/2.50 |
7.50 |
95 |
5.78 |
0.8332 |
|
50 |
49.5 |
7/3.00 |
9.00 |
136 |
7.94 |
0.5786 |
|
50 |
48.4 |
19/1.80 |
9.00 |
133 |
8.45 |
0.5948 |
|
70 |
65.8 |
19/2.10 |
10.50 |
181 |
11.32 |
0.437 |
|
95 |
93.3 |
19/2.50 |
12.50 |
257 |
15.68 |
0.3048 |
|
120 |
117.0 |
19/2.80 |
14.00 |
322 |
18.78 |
0.2459 |
|
150 |
147.1 |
37/2.25 |
15.75 |
405 |
25.30 |
0.196 |
|
185 |
181.6 |
37/2.50 |
17.50 |
501 |
30.54 |
0.1588 |
|
240 |
242.5 |
61/2.25 |
20.25 |
670 |
39.51 |
0.1192 |
|
300 |
299.4 |
61/2.50 |
22.50 |
827 |
47.70 |
0.09651 |
|
400 |
400.1 |
61/2.89 |
26.01 |
1105 |
60.86 |
0.07222 |
|
500 |
499.8 |
61/3.23 |
29.07 |
1381 |
74.67 |
0.05782 |
|
625 |
626.2 |
91/2.96 |
32.56 |
1739 |
95.25 |
0.04625 |
|
800 |
802.1 |
91/3.35 |
36.85 |
2227 |
118.39 |
0.03611 |
|
1000 |
999.7 |
91/3.74 |
41.14 |
2776 |
145.76 |
0.02897 |
BS EN 50182
|
Code Name
|
No.& Dia. Of Wire |
Approx. Overall diameter |
Total Area
|
Approx. Weight |
Nominal breaking load |
Max.DC resistance of conductor at 20℃ |
|
No./mm |
mm |
mm² |
Kg/km |
KN |
Ω/km |
|
|
Gnat |
7/2.21 |
6.63 |
26.9 |
73 |
4.83 |
1.0643 |
|
Mosquito |
7/2.59 |
7.77 |
36.9 |
101 |
6.27 |
0.7749 |
|
Ladybird |
7/2.79 |
8.37 |
42.8 |
117 |
7.28 |
0.6678 |
|
Bluebottle |
7/3.66 |
10.98 |
73.6 |
201 |
11.78 |
0.3880 |
|
Earwig |
7/3.78 |
11.34 |
78.6 |
215 |
12.57 |
0.3638 |
|
Grasshopper |
7/3.91 |
11.73 |
84.1 |
230 |
13.46 |
0.3400 |
|
Clegg |
7/4.17 |
12.51 |
95.6 |
261 |
15.30 |
0.2989 |
|
Beetle |
19/2.67 |
13.35 |
106.4 |
292 |
18.08 |
0.2701 |
|
Bee |
7/4.90 |
14.70 |
132.0 |
361 |
21.12 |
0.2165 |
|
Caterpillar |
19/3.53 |
17.65 |
185.9 |
511 |
29.75 |
0.1546 |
|
Spider |
19/3.99 |
19.95 |
237.6 |
653 |
38.01 |
0.1210 |
|
Moth |
19/5.00 |
25.00 |
373.1 |
1025 |
59.69 |
0.0770 |
|
Drone |
37/3.58 |
25.06 |
372.4 |
1027 |
59.59 |
0.0774 |
|
Maybug |
37/4.09 |
28.63 |
486.1 |
1340 |
77.78 |
0.0593 |
|
Scorpion |
37/4.27 |
29.89 |
529.8 |
1461 |
84.77 |
0.0544 |
|
Cicada |
37/4.65 |
32.55 |
628.3 |
1732 |
100.54 |
0.0459 |
GB/T 1179
|
Code Name
|
Total Area |
No.& Dia. Of Wire |
Approx. Overall diameter |
Approx. Weight |
Nominal breaking load |
Max.DC resistance of conductor at 20℃ |
|
mm² |
No./mm |
mm |
Kg/km |
KN |
Ω/km |
|
|
35 |
34.4 |
7/2.50 |
7.50 |
94.0 |
6.0 |
0.8333 |
|
50 |
49.5 |
7/3.00 |
9.00 |
135 .3 |
8.4 |
0.5787 |
|
70 |
71.3 |
7/3.60 |
10.80 |
194.9 |
11.4 |
0.4019 |
|
95 |
95.1 |
7/4.16 |
12.50 |
260.2 |
15.2 |
0.3010 |
|
120 |
121 2 |
19/2.85 |
14.30 |
333.2 |
20.6 |
0.2374 |
|
150 |
148.1 |
19/3.15 |
15.80 |
407.0 |
24.4 |
0.1943 |
|
185 |
182.8 |
19/3.50 |
17.50 |
502.4 |
30.2 |
0.1574 |
|
210 |
209.9 |
193.75 |
18.80 |
576.8 |
33.6 |
0.1371 |
|
240 |
238.8 |
19/4.00 |
20.00 |
656.3 |
38.2 |
0.1205 |
|
300 |
297.6 |
19/3.20 |
22.40 |
819.8 |
49.1 |
0.0969 |
|
500 |
502.9 |
19/4.16 |
29.10 |
1385.5 |
80.5 |
0.0573 |
AS/NZS 1531
|
Code Name
|
Nominal Area |
No.& Dia. Of Wire |
Approx. Overall diameter |
Approx. Weight |
Nominal breaking load |
Max.DC resistance of conductor at 20℃ |
|
mm² |
No./mm |
mm |
Kg/km |
KN |
Ω/km |
|
|
Leo |
34.36 |
7/2.50 |
7.50 |
95 |
5.71 |
0.833 |
|
Leonids |
41.58 |
7/2.75 |
8.25 |
114 |
6.72 |
0.689 |
|
Libra |
49.48 |
7/3.00 |
9.00 |
136 |
7.98 |
0.579 |
|
Mars |
77.31 |
7/3.75 |
11.25 |
213 |
11.8 |
0.370 |
|
Mercury |
111.33 |
7/4.50 |
13.50 |
306 |
16.9 |
0.258 |
|
Moon |
124.04 |
7/4.75 |
14.25 |
341 |
18.9 |
0.232 |
|
Neptune |
157.62 |
19/3.25 |
16.25 |
434 |
24.7 |
0.183 |
|
Orion |
182.80 |
19/3.50 |
17.50 |
503 |
28.7 |
0.157 |
|
Pluto |
209.85 |
19/3.75 |
18.75 |
578 |
31.9 |
0.137 |
|
Saturn |
261.54 |
37/3.00 |
21.00 |
720 |
42.2 |
0.110 |
|
Sirius |
306.94 |
37/3.25 |
22.75 |
845 |
48.2 |
0.094 |
|
Taurus |
336.69 |
19/4.75 |
23.75 |
927 |
51.3 |
0.0857 |
|
Triton |
408.65 |
37/3.75 |
26.25 |
1125 |
62. 2 |
0.0706 |
|
Triton |
506.04 |
61/3.25 |
29.25 |
1393 |
75.2 |
0.0572 |
|
Ursula |
586.89 |
61/3.50 |
31.50 |
1616 |
87. 3 |
0.0493 |
|
Venus |
673. 72 |
61/3.75 |
33.75
|
1855 |
97.2 |
0.0429 |
Class AA:

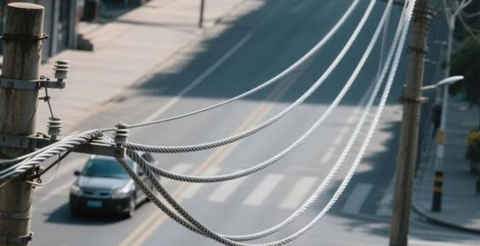

For bare conductors usually used in overhead lines.
Class A:
For conductors to be covered with weather resistant materials and for bare conductors where greater flexibility is required.
Copyright © ZHENGZHOU SHIZHAN INDUSTRIAL CO., LTD. Power by yisainuo
